| 規格 (Dash) | 軟管內徑 I.D | 增強層外徑 W.D | 軟管外徑 O.D. | 最大工作壓力 . | 試驗壓力 P.P | 最小爆破壓力 Min.B.P. | 最小彎曲半徑 Min.B.R. | 參考重量 W.T | |||
| SIZE | 最小 Min | 最大 Max | 最小 Min | 最大 Max | 最小 Min | 最大 Max | Max.W.P | ||||
| IN | mm | mm | mm | mm | mm | mm | MPa | MPa | MPa | mm | kg/m |

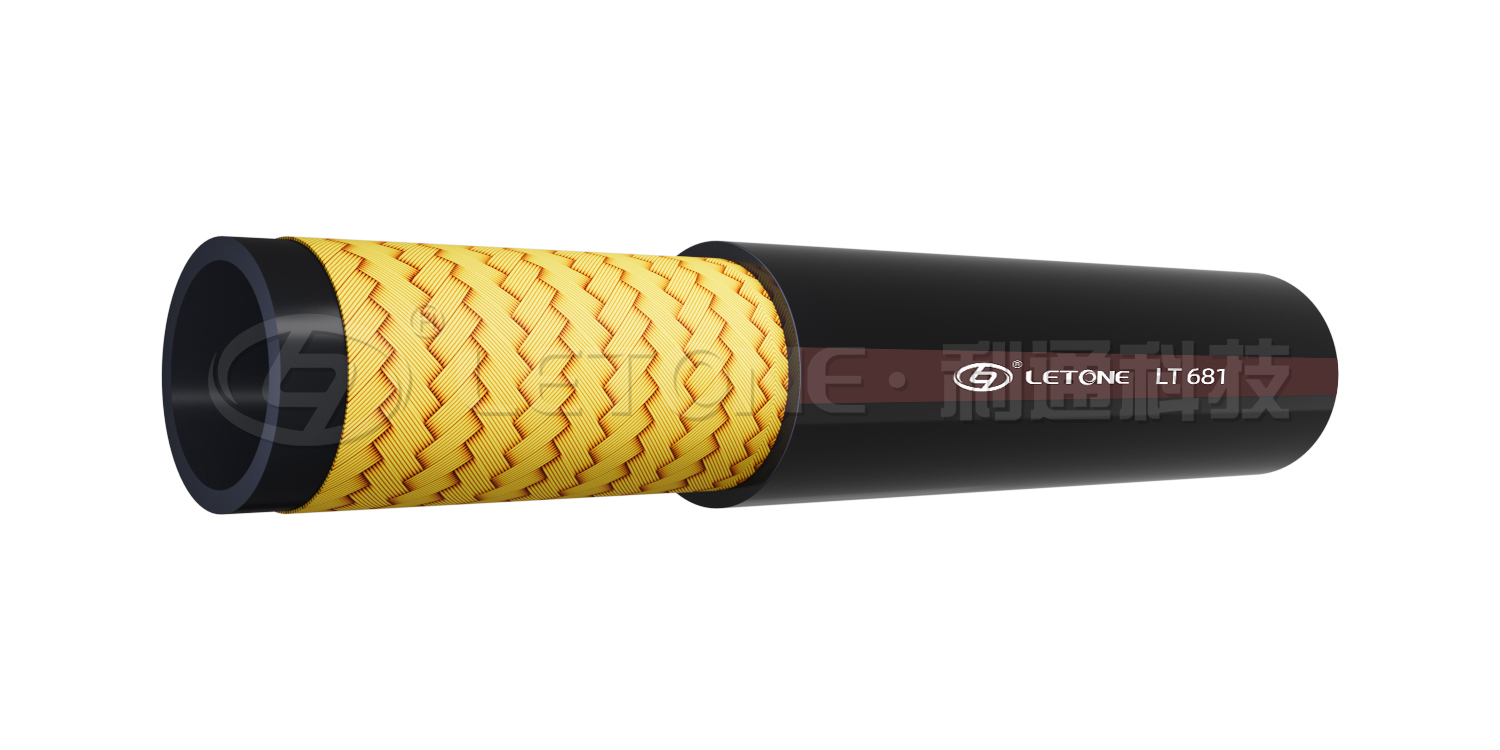

| 3/16-1 | 4.6 | 5.4 | 9.0 | 10.0 | 11.0 | 12.2 | 25.0 | 50.0 | 100.0 | 90 | 0.17 |
| 1/4-1 | 6.2 | 7.0 | 10.6 | 11.6 | 12.8 | 14.0 | 22.5 | 45.0 | 90.0 | 100 | 0.22 |
| 5/16-1 | 7.7 | 8.5 | 12.5 | 13.5 | 14.6 | 15.8 | 21.5 | 43.0 | 85.0 | 115 | 0.28 |
| 3/8-1 | 9.3 | 10.3 | 14.5 | 15.7 | 16.8 | 18.0 | 18.0 | 36.0 | 72.0 | 130 | 0.34 |
| 1/2-1 | 12.3 | 13.5 | 17.5 | 19.0 | 20.1 | 21.3 | 16.0 | 32.0 | 64.0 | 180 | 0.42 |
| 5/8-1 | 15.5 | 16.7 | 20.6 | 22.2 | 23.2 | 24.8 | 13.0 | 26.0 | 52.0 | 200 | 0.51 |
| 3/4-1 | 18.6 | 19.8 | 24.3 | 25.5 | 27.0 | 29.0 | 10.5 | 21.0 | 42.0 | 240 | 0.68 |
| 1-1 | 25.0 | 26.4 | 31.9 | 33.1 | 35.2 | 36.8 | 8.8 | 17.5 | 35.0 | 300 | 0.96 |
| 1 1/4-1 | 31.4 | 33.0 | 39.2 | 40.8 | 42.3 | 44.7 | 6.3 | 13.0 | 25.0 | 420 | 1.19 |
| 1 1/2-1 | 37.7 | 39.3 | 44.9 | 46.5 | 48.0 | 50.4 | 5.0 | 10.0 | 20.0 | 500 | 1.34 |
| 2-1 | 50.4 | 52.0 | 58.7 | 60.3 | 61.8 | 64.2 | 4.0 | 8.0 | 16.0 | 630 | 1.89 |

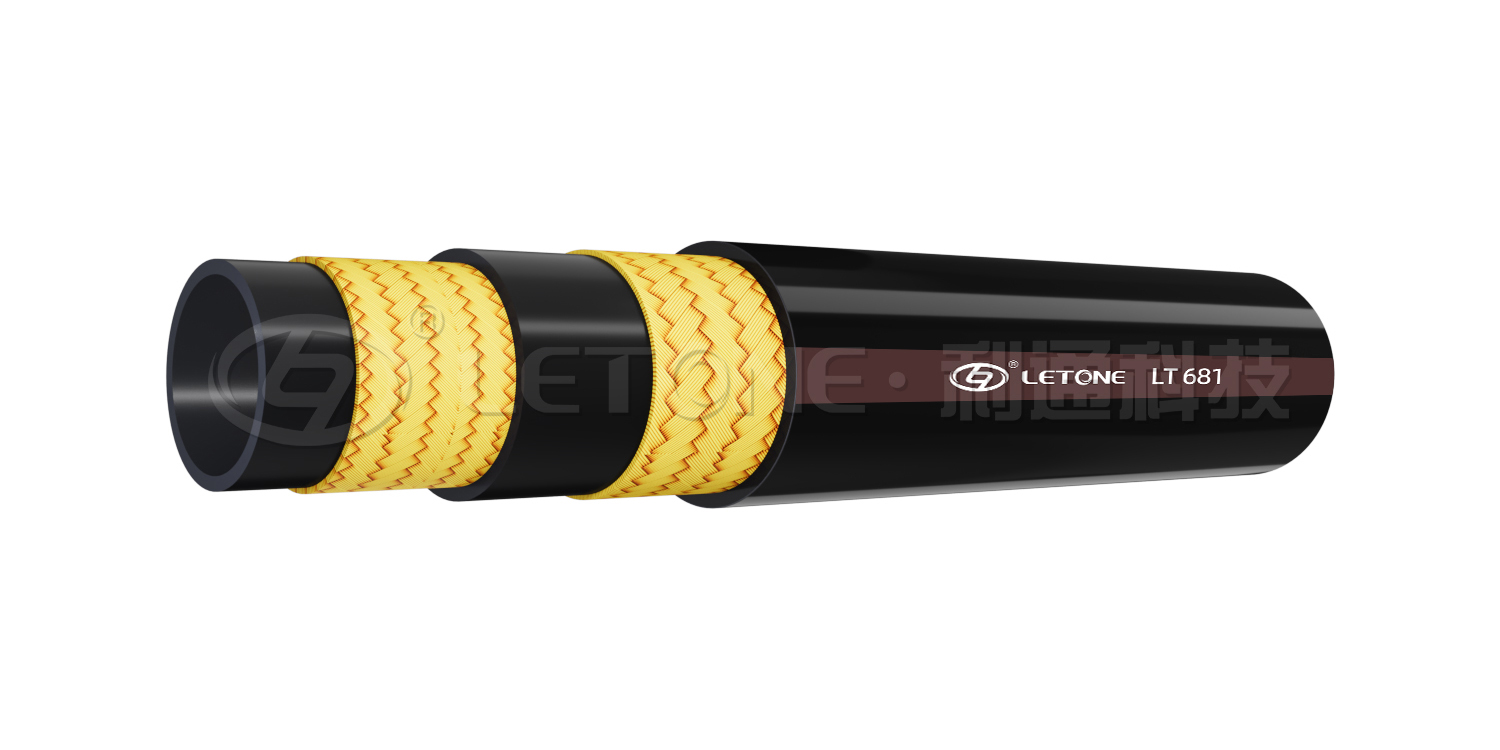

| 3/16-2 | 4.6 | 5.4 | 10.6 | 11.6 | 12.7 | 13.9 | 41.5 | 83.0 | 166.0 | 90 | 0.27 |
| 1/4-2 | 6.1 | 7.0 | 12.6 | 13.6 | 14.4 | 15.6 | 40.0 | 80.0 | 160.0 | 100 | 0.35 |
| 5/16-2 | 7.7 | 8.5 | 14.1 | 15.1 | 15.7 | 16.9 | 35.0 | 70.0 | 140.0 | 115 | 0.40 |
| 3/8-2 | 9.3 | 10.3 | 16.3 | 17.5 | 18.1 | 19.3 | 33.0 | 66.0 | 132.0 | 130 | 0.51 |
| 1/2-2 | 12.3 | 13.5 | 19.4 | 20.6 | 21.6 | 22.8 | 27.5 | 55.0 | 110.0 | 180 | 0.63 |
| 5/8-2 | 15.5 | 16.7 | 22.2 | 23.8 | 24.6 | 26.2 | 25.0 | 50.0 | 100.0 | 200 | 0.74 |
| 3/4-2 | 18.6 | 19.8 | 26.2 | 27.8 | 28.8 | 30.4 | 21.5 | 43.0 | 86.0 | 240 | 0.92 |
| 1-2 | 25.0 | 26.4 | 33.6 | 34.8 | 36.3 | 37.9 | 16.5 | 32.5 | 66.0 | 300 | 1.33 |
| 1 1/4-2 | 31.4 | 33.0 | 43.6 | 45.0 | 46.3 | 48.7 | 12.5 | 25.0 | 50.0 | 420 | 1.97 |
| 1 1/2-2 | 37.7 | 39.3 | 49.6 | 51.4 | 52.8 | 55.2 | 9.0 | 18.0 | 36.0 | 500 | 2.33 |
| 2-2 | 50.4 | 52.0 | 62.3 | 64.7 | 65.6 | 68.0 | 8.0 | 16.0 | 32.0 | 630 | 2.88 |
加*項僅供參考，具體以管體為準
